JG Series > JGL15CA/HA...JGL150CA/HA

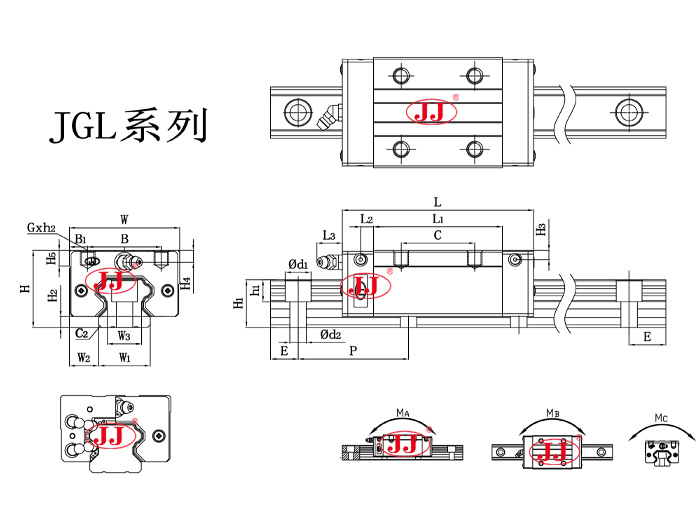

model	Combination size			Rail size							Installation bolt size of guide rail	Slider size (mm)											Basic rated dynamic load	Basic rated static load	Torque			weight		inventory
model	H	H2	W2	W1	H1	d1Xd2Xh1	P	E	C2	W3	Installation bolt size of guide rail	W	B	B1	C	L1	L	L3	GXh2	H5	H4	H3	C(KN)	C0(KN)	Axial MA	Lateral MB	Radial MC	slider	Guide rail	inventory
JGL15CA	24	4.3	9.5	15	15	7.5X4.5X5.3	60	20	0.7	9.55	M4X16	34	26	4	26	39.4	62	5.3	M4X4	6	3.95	3.7	11.4	25.3	0.15	0.15	0.17	0.14	1.45	√
JGL25CA	36	5.5	12.5	23	22	11X7X9	60	20	1.5	15.8	M6X20	48	35	6.5	35	58	82.4	12	M6X6	8	6	9	26.5	59.2	0.51	0.51	0.64	0.42	3.21	√
JGL25HA	36	5.5	12.5	23	22	11X7X9	60	20	1.5	15.8	M6X20	48	35	6.5	50	78.6	103	12	M6X6	8	6	9	32.75	76	0.88	0.88	0.87	0.57	3.21	√
JGL30CA	42	6	16	28	26	14X9X12	80	20	1.5	18.6	M8X25	60	40	10	40	70	98	12	M8X10	8.5	6.5	10.8	38.7	83	0.85	0.85	1.06	0.78	4.47	√
JGL30HA	42	6	16	28	26	14X9X12	80	20	1.5	18.6	M8X25	60	40	10	60	93	121	12	M8X10	8.5	6.5	10.8	47.3	110	1.47	1.47	1.4	1.03	4.47	√
JGL35CA	48	7.5	18	34	29	14X9X12	80	20	1.5	23.8	M8X25	70	50	10	50	80	111.5	12	M8X12	10.2	9	12.6	49.52	103	1.2	1.2	1.73	1.14	6.3	√
JGL35HA	48	7.5	18	34	29	14X9X12	80	20	1.5	23.8	M8X25	70	50	10	72	105.8	137.3	12	M8X12	10.2	9	12.6	60.21	136	2.08	2.08	2.29	1.52	6.3	√
JGL45CA	60	9.5	20.5	45	38	20X14X17	105	22.5	2	29	M12X35	86	60	13	60	97	140	12.9	M10X17	16	8.5	20.5	77.57	156	2.35	2.35	3.01	2.08	10.41	√
JGL45HA	60	9.5	20.5	45	38	20X14X17	105	22.5	2	29	M12X35	86	60	13	80	128.8	172	12.9	M10X17	16	8.5	20.5	94.54	207	4.07	4.07	4	2.75	10.41	√
JGL55CA	70	13	23.5	53	44	23X16X20	120	30	2	38	M14X45	100	75	12.5	75	117.7	168	12.9	M12X18	17.5	12	19	115	228	4.06	4.06	5.66	3.25	15.08	√
JGL55HA	70	13	23.5	53	44	23X16X20	120	30	2	38	M14X45	100	75	12.5	95	155.8	206	12.9	M12X18	17.5	12	19	139	301	7.01	7.01	7.49	4.27	15.08	√
