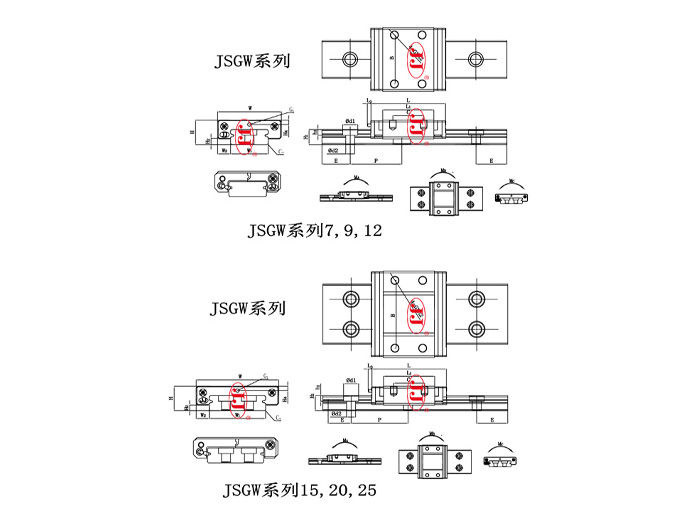

| model | Combination size (mm) | Rail size (mm) | Installation bolt size of guide rail | Slider size (mm) | Basic rated dynamic load | Basic rated static load | torque | weight | inventory | ||||||||||||||||||||
| H | H2 | W2 | W1 | W3 | H1 | d1Xd2Xh1 | P | E | C2 | W | B | B1 | C | L1 | L | L3 | G1 | GXh2 | H4 | C(KN) | C0(KN) | Axial MA | Lateral MB | Radial MC | slider | Guide rail | |||
| JSGW3C | 4.5 | - | 3 | 6 | - | 2.7 | 4X2.4X1.5 | 15 | - | 0.3 | - | 12 | - | - | 4.5 | 10 | 11.7 | - | φ0.3 | M2.5X1.5 | - | 0.28 | 0.53 | 1.6 | 0.9 | 0.9 | 3.4 | 105 | X |
| JSGW3H | 4.5 | - | 3 | 6 | - | 2.7 | 4X2.4X1.5 | 15 | - | 0.3 | - | 12 | - | - | 8 | 15.1 | 16 | - | φ0.3 | M2.5X1.5 | - | 0.37 | 0.8 | 2.5 | 1.9 | 1.9 | 3.4 | 105 | X |
| JSGW5C | 6.5 | 1.5 | 3.5 | 10 | - | 4 | 5.5X3X1.6 | 20 | - | 0.3 | - | 17 | 13 | 2 | 6.5 | 13.6 | 20 | - | φ0.9 | M3X3 | - | 0.48 | 0.9 | 4.6 | 2.2 | 2.2 | 6 | 280 | √ |
| JSGW5H | 6.5 | 1.5 | 3.5 | 10 | - | 4 | 5.5X3X1.6 | 20 | - | 0.3 | - | 17 | 13 | 2 | 6.5 | 13.6 | 20 | - | φ0.9 | M3X3 | - | 0.48 | 0.9 | 4.6 | 2.2 | 2.2 | 6 | 280 | √ |
| JSGW7C | 9 | 1.9 | 5.5 | 14 | - | 5.2 | 6X3.5X3.2 | 30 | 10 | 0.45 | M3X6 | 25 | 19 | 3 | 10 | 21 | 31.2 | - | φ1.2 | M3X3 | 1.85 | 1.37 | 2.06 | 15.7 | 7.1 | 7.1 | 20 | 510 | √ |
| JSGW7H | 9 | 1.9 | 5.5 | 14 | - | 5.2 | 6X3.5X3.2 | 30 | 10 | 0.45 | M3X6 | 25 | 19 | 3 | 19 | 30.8 | 41 | - | φ1.2 | M3X3 | 1.85 | 1.77 | 3.14 | 23.45 | 15.5 | 15.5 | 29 | 510 | √ |
| JSGW9C | 12 | 2.9 | 6 | 18 | - | 7 | 6X3.5X4.5 | 30 | 10 | 0.45 | M3X8 | 30 | 21 | 4.5 | 12 | 27.5 | 39.3 | - | φ1.2 | M3X3 | 2.4 | 2.75 | 4.12 | 40.12 | 18.9 | 18.9 | 40 | 910 | √ |
| JSGW9H | 12 | 2.9 | 6 | 18 | - | 7 | 6X3.5X4.5 | 30 | 10 | 0.45 | M3X8 | 30 | 23 | 3.5 | 24 | 38.5 | 50.7 | - | φ1.2 | M3X3 | 2.4 | 3.43 | 5.89 | 54.54 | 34 | 34 | 57 | 910 | √ |
| JSGW12C | 14 | 3.4 | 8 | 24 | - | 8.5 | 8X4.5X4.5 | 40 | 15 | 0.5 | M4X8 | 40 | 28 | 6 | 15 | 31.3 | 46.1 | - | φ1.2 | M3X3.6 | 2.8 | 3.92 | 5.89 | 70.34 | 27.8 | 27.8 | 711 | 1490 | √ |
| JSGW12H | 14 | 3.4 | 8 | 24 | - | 8.5 | 8X4.5X4.5 | 40 | 15 | 0.5 | M4X8 | 40 | 28 | 6 | 28 | 45.6 | 60.4 | - | φ1.2 | M3X3.6 | 2.8 | 5.1 | 8.24 | 102.7 | 57.3 | 57.3 | 103 | 1490 | √ |
| JSGW15C | 16 | 3.4 | 9 | 42 | 23 | 9.5 | 8X4.5X4.5 | 40 | 15 | 0.5 | M4X10 | 60 | 45 | 7.5 | 20 | 38 | 54.8 | 5.2 | M3 | M4X4.2 | 3.2 | 6.77 | 9.22 | 119.34 | 56.6 | 56.6 | 143 | 2860 | X |
| JSGW15H | 16 | 3.4 | 9 | 42 | 23 | 9.5 | 8X4.5X4.5 | 40 | 15 | 0.5 | M4X10 | 60 | 45 | 7.5 | 35 | 57 | 73.8 | 5.2 | M3 | M4X4.2 | 3.2 | 8.93 | 13.38 | 299.01 | 112.6 | 112.6 | 215 | 2860 | X |
