Kit-screw Guide
Screw fittings > BK10..BK40
Kit-screw Guide
Kit-screw Guide
Kit-screw Guide

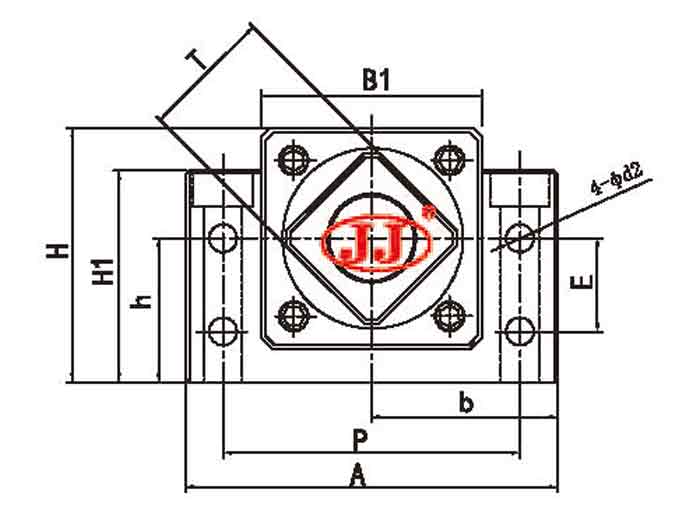

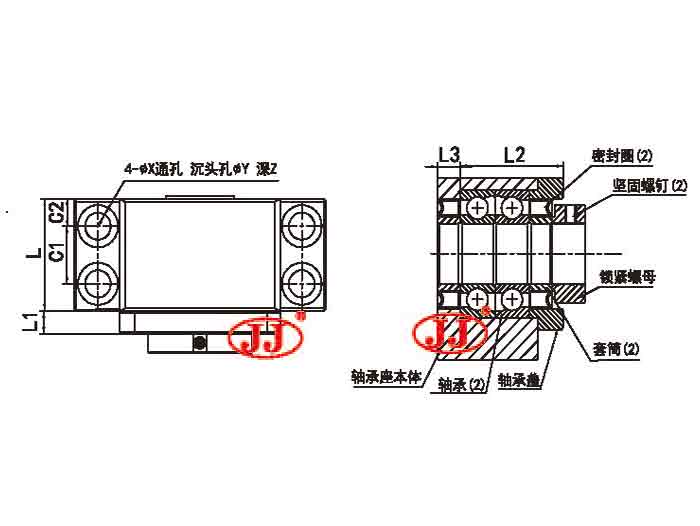

Model NO. diameter Dimensions of Assembly(mm)
d1 L L1 L2 L3 B H b ±0.02 h ±0.02 B1 H1 E P C1 C2 d2 X Y Z m Stock
BK10 12/14/15 10 25 5 29 5 60 39 30 22 34 32.5 15 46 13 6 5.5 6.6 10.8 5 M3 ○
BK12 14/15/16 12 25 5 29 5 60 43 30 25 34 32.5 18 46 13 6 5.5 6.6 10.8 15 M4 ○
BK15 18/20 15 27 6 34 6 70 48 35 28 40 38 18 54 15 6 5.5 6.6 11 6.5 M4 ○
BK17 20/25 17 35 9 44 7 86 64 43 39 50 55 28 68 19 8 6.6 9 14 8.5 M4 ○
BK20 25/28 20 35 8 45 8 88 60 44 34 52 50 22 70 19 8 6.6 9 14 8.5 M4 ○
BK25 32/36 25 42 12 54 9 106 80 53 48 64 70 33 85 22 10 9 11 17 11 M5 ○
BK30 36/40 30 45 14 61 9 128 89 64 51 76 78 33 102 23 11 11 14 20 13 M6 ○
BK35 40/45 35 50 14 67 12 140 96 70 52 88 79 35 114 26 12 11 14 20 13 M8 ○
BK40 50 40 61 18 76 15 160 110 80 60 100 90 37 130 33 14 14 18 26 17.5 M8 ○
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - -
