LINEAR MOTION SERIES
|
Model No.
|
NominalShaft Diameter
|

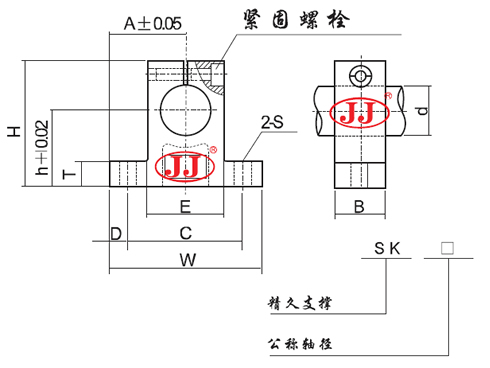

Dimensions(mm)
|
Weight(g)
|
Inventory
|
| h |
A |
W |
H |
T |
E |
D |
C |
B |
S |
J |
|
SK3
|
φ3
|
20
|
21
|
42
|
32.8
|
6
|
18
|
5
|
32
|
14
|
φ5.5
|
M4
|
24
|
○
|
|
SK4
|
φ4
|
20
|
21
|
42
|
32.8
|
6
|
18
|
5
|
32
|
14
|
φ5.5
|
M4
|
24
|
○
|
|
SK5
|
φ5
|
20
|
21
|
42
|
32.8
|
6
|
18
|
5
|
32
|
14
|
φ5.5
|
M4
|
24
|
○
|
|
SK6
|
φ6
|
20
|
21
|
42
|
32.8
|
6
|
18
|
5
|
32
|
14
|
φ5.5
|
M4
|
24
|
√
|
|
SK8
|
φ8
|
20
|
21
|
42
|
32.8
|
6
|
18
|
5
|
32
|
14
|
φ5.5
|
M4
|
24
|
√
|
|
SK10
|
φ10
|
20
|
21
|
42
|
32.8
|
6
|
18
|
5
|
32
|
14
|
φ5.5
|
M4
|
24
|
√
|
|
SK12
|
φ12
|
23
|
21
|
42
|
38
|
6
|
20
|
5
|
32
|
14
|
φ5.5
|
M4
|
30
|
√
|
|
SK13
|
φ13
|
23
|
21
|
42
|
38
|
6
|
20
|
5
|
32
|
14
|
φ5.5
|
M4
|
30
|
√
|
|
SK16
|
φ16
|
27
|
24
|
48
|
44
|
8
|
25
|
5
|
38
|
16
|
φ5.5
|
M4
|
40
|
√
|
|
SK20
|
φ20
|
31
|
30
|
60
|
51
|
10
|
30
|
7.5
|
45
|
20
|
φ6.6
|
M5
|
70
|
√
|
|
SK25
|
φ25
|
35
|
35
|
70
|
60
|
12
|
38
|
7
|
56
|
24
|
φ6.6
|
M6
|
130
|
√
|
|
SK30
|
φ30
|
42
|
42
|
84
|
70
|
12
|
44
|
10
|
64
|
28
|
φ9
|
M6
|
180
|
√
|
|
SK35
|
φ35
|
50
|
49
|
98
|
85
|
15
|
50
|
12
|
74
|
32
|
φ11
|
M8
|
270
|
√
|
|
SK40
|
φ40
|
60
|
57
|
114
|
96
|
15
|
60
|
12
|
90
|
36
|
φ11
|
M8
|
420
|
√
|
|
SK50
|
φ50
|
70
|
63
|
126
|
120
|
18
|
74
|
13
|
100
|
40
|
φ14
|
M12
|
750
|
√
|
|
SK60
|
φ60
|
80
|
74
|
148
|
136
|
18
|
90
|
14
|
120
|
45
|
φ14
|
M12
|
1100
|
√
|
